Carbon Express Maxima RED 4mm Carbon Hunting Shafts, dz.
Carbon Express Maxima RED 4mm Carbon Hunting Shafts, dz.
Couldn't load pickup availability
Sold by the dozen: 12 unfletched carbon hunting shafts.

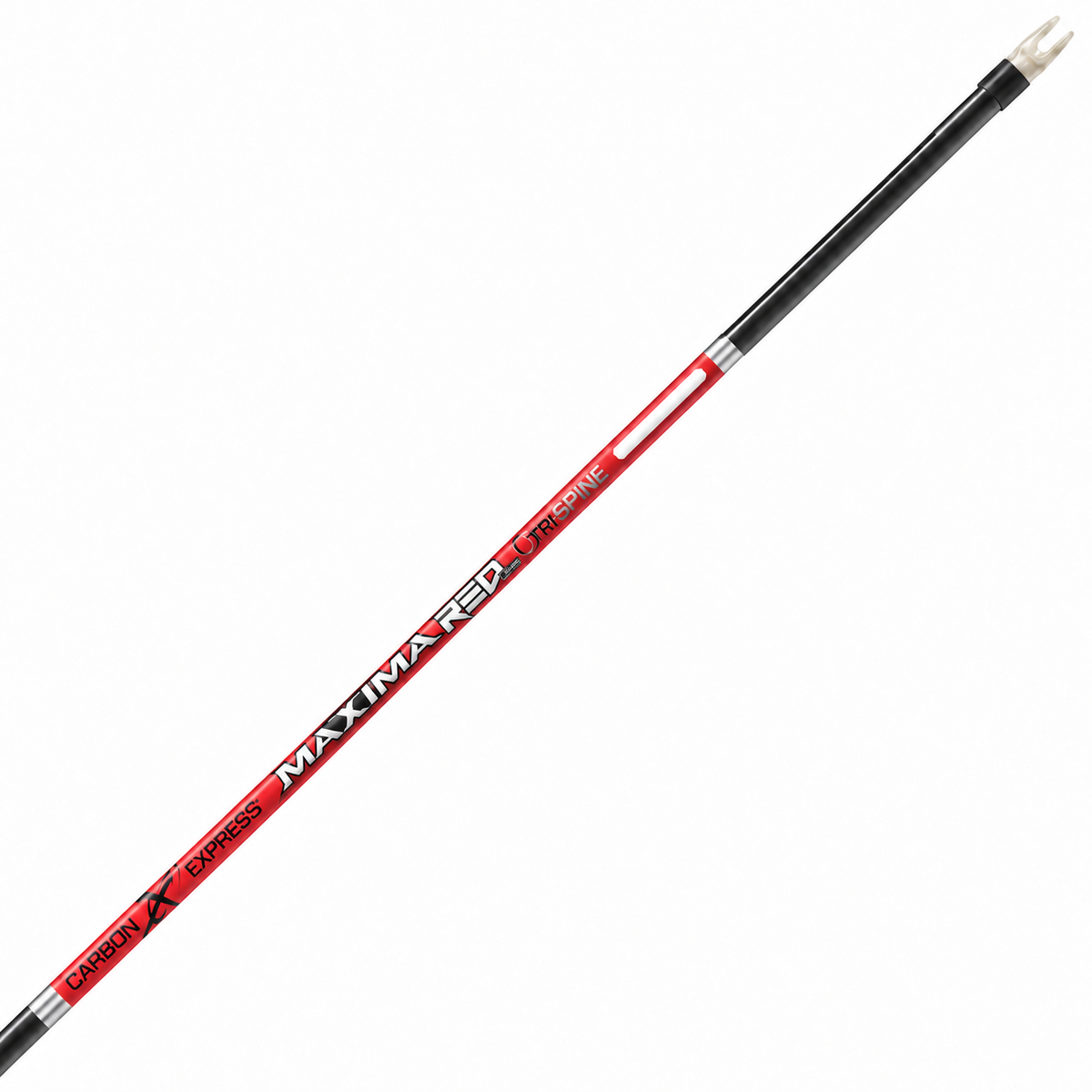

Carbon Express Maxima RED 4mm shafts combine a micro-diameter, high-modulus carbon shaft with RED ZONE Tri-Spine Technology to manage flex and improve broadhead control. Their slim profile helps reduce wind drift and supports penetration, while 360-degree spine consistency promotes repeatable flight.
Features and specifications
- 100% high-modulus carbon construction; .166-inch inside diameter.
- Unfletched shafts with Bulldog nock collars and LaunchPad Precision nocks. No vanes or feathers.
- Includes 50-grain aluminum outserts.
- Factory chart: maximum straightness ±.002 inch; average straightness ±.001 inch.
- Weight tolerance: ±1.0 grain.
| Spine | GPI | Stock length (in.) | Outside diameter (in.) | Average spine | Outsert size | Collar size |
|---|---|---|---|---|---|---|
| 300 | 11.3 | 32.8 | .254 | .297 | #3 | #3 |
| 350 | 10.2 | 32 | .246 | .349 | #3 | #2 |
| 400 | 9.3 | 32 | .240 | .399 | #2 | #2 |
GPI means shaft weight in grains per inch.
Matching factory components
- 300 spine: #3 50-grain outsert (CX0742); #3 Bulldog collar (CX0762).
- 350 spine: #3 50-grain outsert (CX0742); #2 Bulldog collar (CX0761).
- 400 spine: #2 50-grain outsert (CX0741); #2 Bulldog collar (CX0761).
- All three spines use the 4mm pearl-white LaunchPad Precision nock (CX0750).
Component part numbers identify the matching factory replacement 12-packs.
Factory reference charts
The spine-selection chart is a factory reference covering additional sizes. Only 300, 350, and 400 spine are offered here. Follow the chart's point-weight adjustments and selection guidance.
If having Arrows/Shafts cut, measure from the hole in the nock to the end of the Arrow/Shaft without the insert or point.
