Carbon Express Maxima RED 5mm Carbon Hunting Shafts, dz.

Sold by the dozen: 12 unfletched carbon hunting shafts.

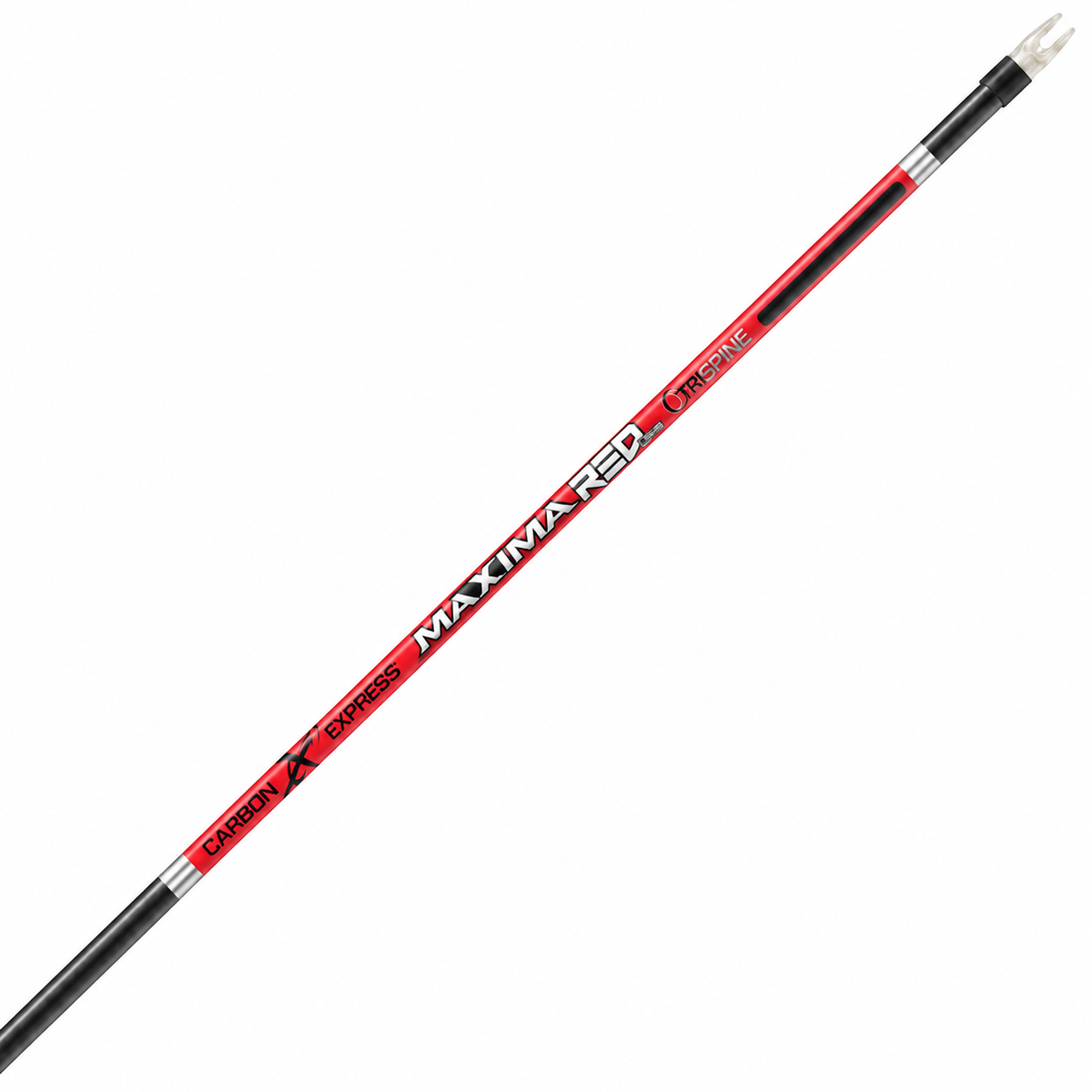

Carbon Express Maxima RED 5mm shafts pair a small-diameter, high-modulus carbon construction with RED ZONE Tri-Spine Technology to control dynamic flex and help broadheads stabilize quickly. The .204-inch inside diameter provides a balance of penetration, durability, and reduced wind drift. Carbon Express 360-degree spine consistency promotes repeatable shaft behavior and consistent flight.

Features and specifications

• 100% high-modulus carbon construction with RED ZONE Tri-Spine Technology.
• 5mm shaft family with a .204-inch inside diameter.
• Unfletched shafts with Bulldog nock collars and clear LaunchPad Precision nocks. No vanes or feathers.

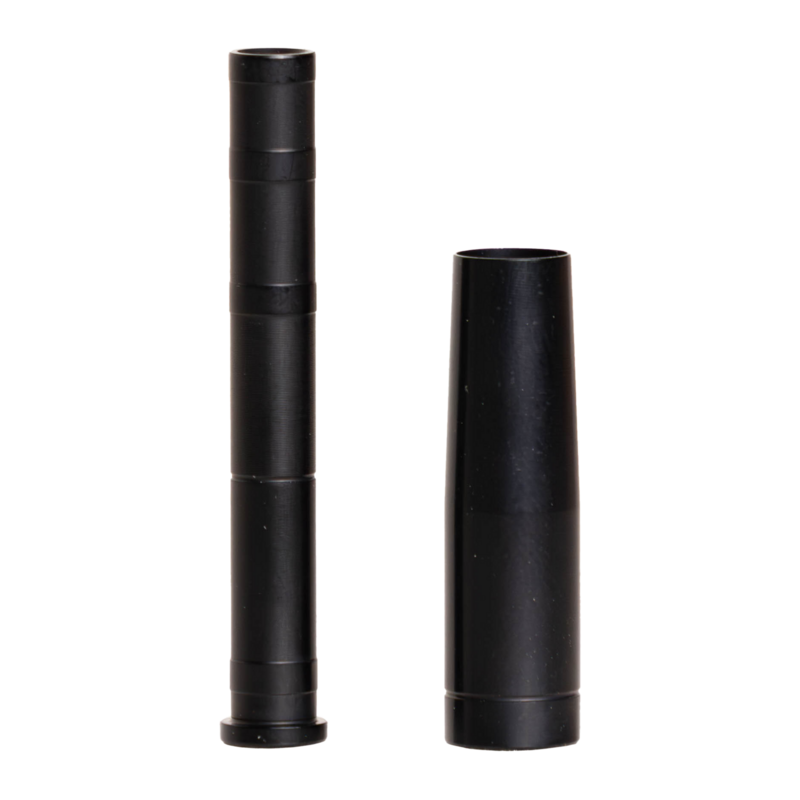

• Includes 40-grain aluminum sleeved, two-piece insert and outsert components.
• Factory chart: maximum straightness ±.002 inch; average straightness ±.001 inch.
• Weight tolerance: ±1.0 grain.

GPI means shaft weight in grains per inch. Dimensions and average spine values follow the factory Maxima RED 5mm reference chart below.

Matching factory components

• 300 spine: #7 40-grain 5mm insert and outsert (CX0726); #4 Bulldog collar (CX0773).
• 350 spine: #6 40-grain 5mm insert and outsert (CX0725); #4 Bulldog collar (CX0773).
• 400 spine: #5 40-grain 5mm insert and outsert (CX0724); #3 Bulldog collar (CX0772).
• All three spines use the 5mm clear LaunchPad Precision nock (CX0752).

Component part numbers identify the matching factory replacement 12-packs.

Factory reference charts

Factory charts also reference other pack quantities, fletched arrows, or sizes. This listing is for 12 unfletched shafts; only 300, 350, and 400 spine are offered here. Follow the selection chart's point-weight adjustments and guidance.

If having Arrows/Shafts cut, measure from the hole in the nock to the end of the Arrow/Shaft without the insert or point.
