$188.99

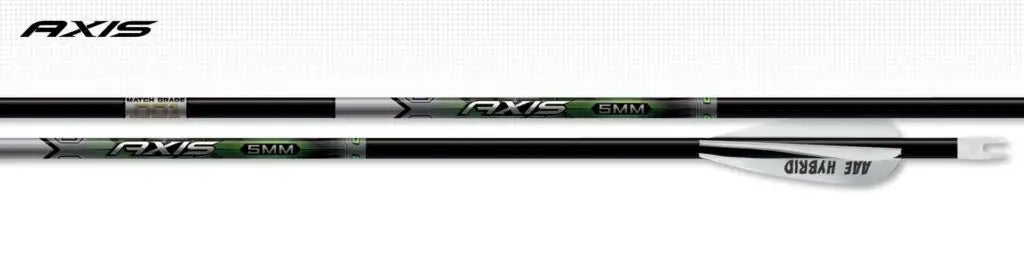

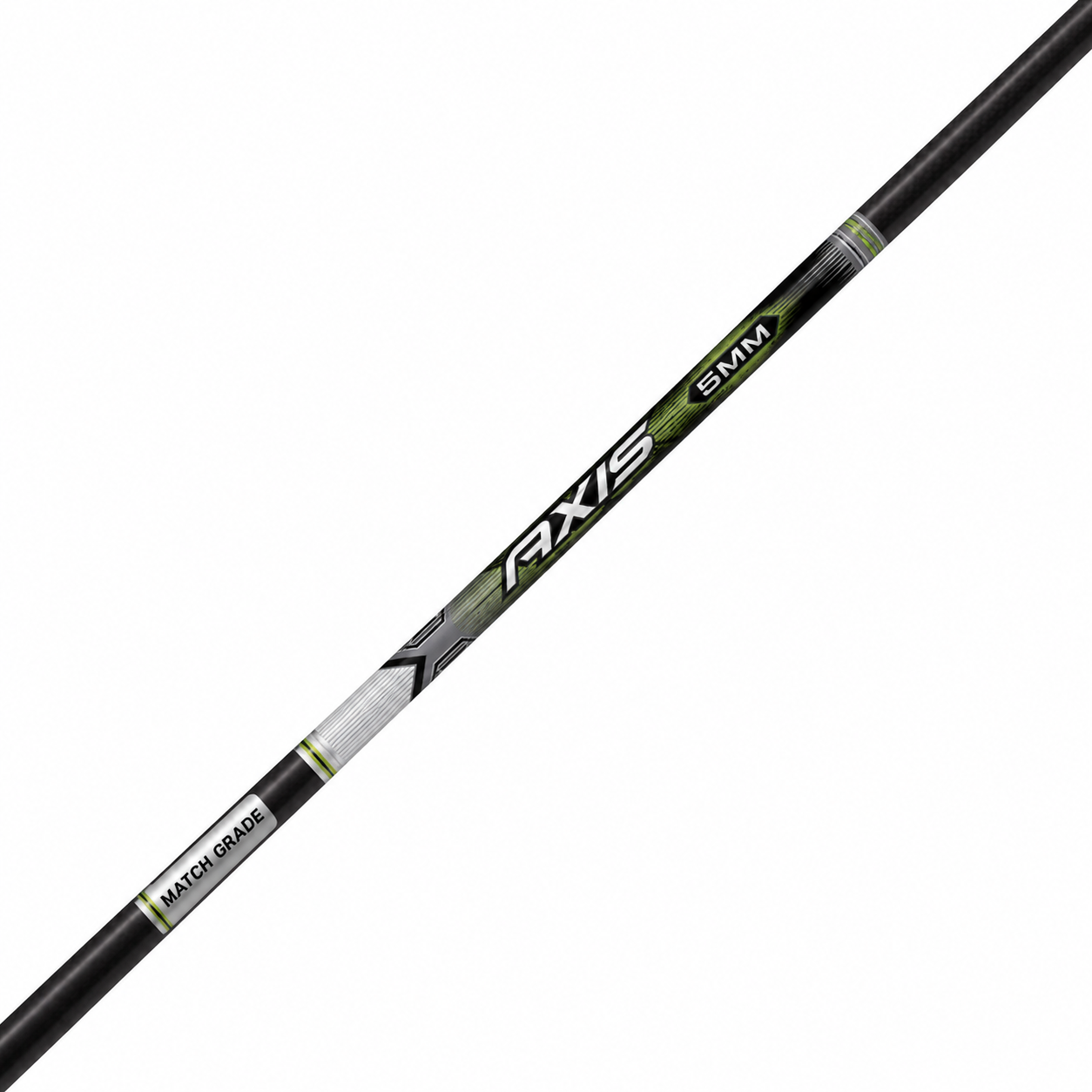

Easton 5mm Axis Match Grade Shafts, dz.
Description
SHAFTS (NOT MADE-UP ARROWS)
Match Grade Version – The hands-down proven small diameter all-carbon arrow. Faster, Deeper, Deadlier.
• High-strength carbon-composite fibers
• 5mm small diameter uniform ACU-CARBON
• Straightness: ± .001”
• 5mm HIT 8-32 inserts included (16 grains)
• Pre-installed 5mm X Nocks (9 grains)
• NEW Match Grade HIT Collars included (13-21 grains)
| Size |
Shaft Weight GPI |
Spine @ 28″ Span Deflection in inches |
Stock Length Inches |
Field Point (O.D. Inches) |
Match Grade HIT Collar (Size) |
O.D. Inches |
5MM Half Out |
|---|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| 600 | 7.2 | 0.600 | 30.5 | 17/64 | #1 | .0253 | #1 |
| 500 | 8.1 | 0.500 | 31 | 17/64 | #1 | 0.258 | #1 |
| 400 | 9.0 | 0.400 | 31.5 | 17/64 | #2 | 0.264 | #2 |
| 340 | 9.5 | 0.340 | 32 | 9/32 | #3 | 0.267 | #2 |
| 300 | 10.7 | 0.300 | 32.5 | 9/32 | #4 | 0.275 | #2 |
| 260 | 11.5 | 0.260 | 34* | 9/32 | #5 | 0.280 | #2 |
| 200 | 12 | .0200 | 34* | 9/32 | #6 | 0.286 | #2 |
