Easton Archery
Easton 5mm Half-Out Inserts, dz.
Easton 5mm Half-Out Inserts, dz.
Regular price
$25.99 USD
Regular price
Sale price
$25.99 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

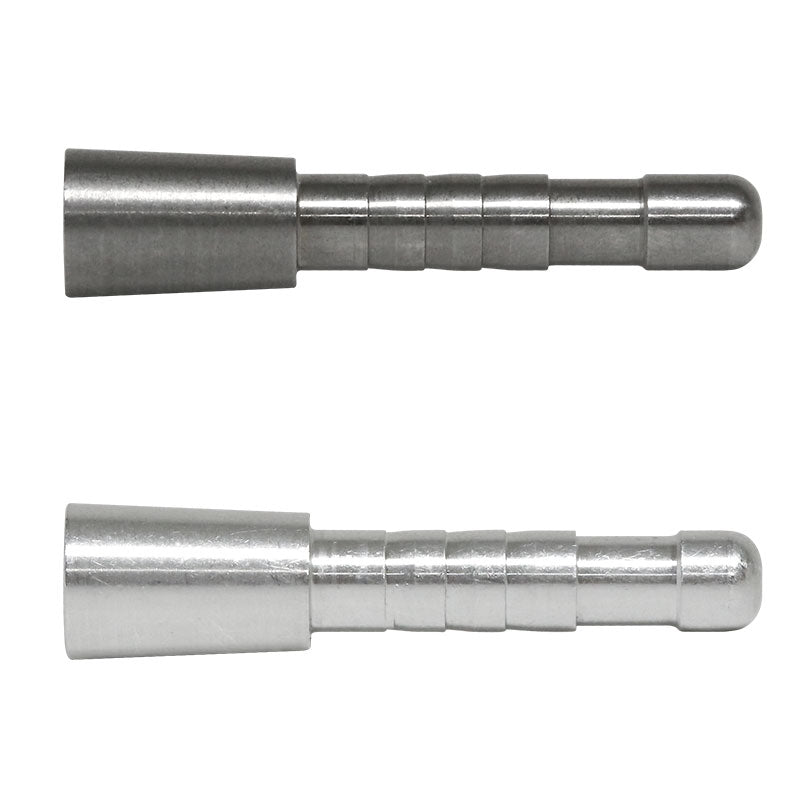

Easton’s 5MM Half-Out Insert is a convenient insert option compatible with any Easton 5mm arrow shaft. Available in Aluminum or Stainless Steel configurations, this half-out delivers improved FOC versus conventional inserts. Sold in dozens.
Aluminum Half-Out Specifications ($24.99):
- 8-32 Thread
- 25 grains
- 7075-T6 Alloy
- Packaged per dozen
- Exposed length is 0.487″
Stainless Steel Half-Out Specifications ($29.99):
- 8-32 Thread
- 75 Grains
- 416 Stainless Steel
- Packaged per dozen
- Exposed length is 0.487″
5MM FMJ CHART
| SIZE | SHAFT WEIGHT GPI |
SPINE @ 28" SPAN DEFLECTION IN INCHES |
STOCK LENGTH INCHES |
RPS POINT O.D. INCHES |
BROADHEAD ADAPTER RING (5 GRAINS) | O.D. INCHES |
HALF OUT SIZE |
|---|---|---|---|---|---|---|---|
| 500 | 9.1 | 0.500 | 31 | 17/64 | BAR 3 | 0.256 | #1 |
| 400 | 10.2 | 0.400 | 31.5 | 17/64 | BAR 3 | 0.263 | #2 |
| 340 | 11.3 | 0.340 | 32 | 9/32 | BAR 5 | 0.269 | #2 |
| 300 | 12.0 | 0.300 | 32.5 | 9/32 | BAR 5 | 0.273 | #2 |
| 250 | 11.5 | 0.250 | 33 | 17/64 | BAR 6 | 0.290 | #2 |
5MM AXIS CHART
| SIZE | SHAFT WEIGHT GPI |
SPINE @ 28" SPAN DEFLECTION IN INCHES |
STOCK LENGTH INCHES |
RPS POINT O.D. INCHES |
BROADHEAD ADAPTER RING (5 GRAINS) | O.D. INCHES |
HALF OUT SIZE |
|---|---|---|---|---|---|---|---|
| 700 | 6.1 | 0.700 | 31.5 | 17/64 | BAR 3 | 0.245 | #1 |
| 600 | 7.2 | 0.600 | 30.5 | 17/64 | BAR 3 | 0.253 | #1 |
| 500 | 8.1 | 0.500 | 31 | 17/64 | BAR 3 | 0.256 | #1 |
| 400 | 9.0 | 0.400 | 31.5 | 17/64 | BAR 4 | 0.264 | #2 |
| 340 | 9.5 | 0.340 | 32 | 9/32 | BAR 5 | 0.267 | #2 |
| 300 | 10.7 | 0.300 | 32.5 | 9/32 | BAR 6 | 0.275 | #2 |
| 260 | 11.5 | 0.260 | 34* | 9/32 | BAR 6 | 0.280 | #2 |
