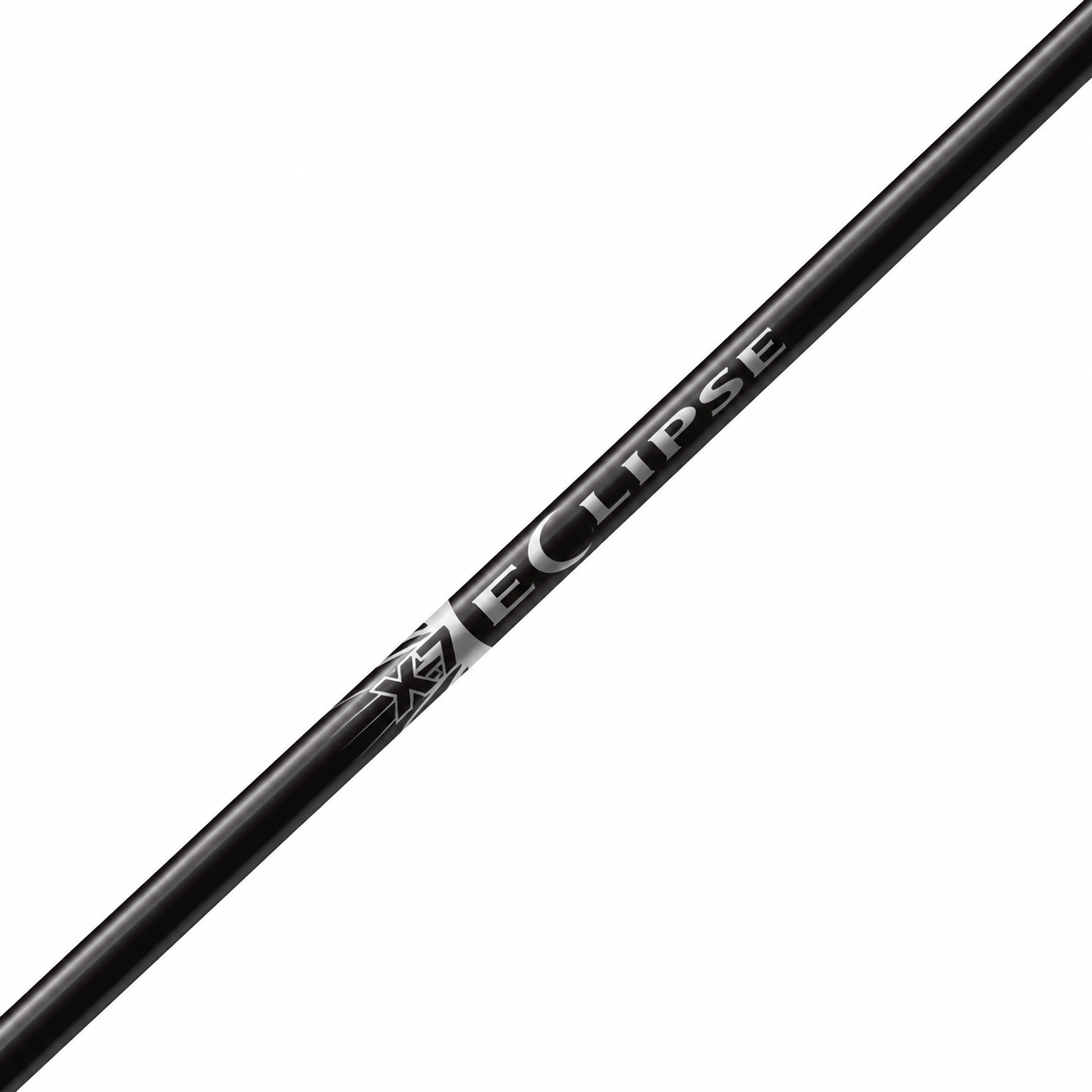

Easton X7 Eclipse Shafts, dz.
Easton X7 Eclipse Shafts, dz.
Regular price
$148.48 USD
Regular price
Sale price
$148.48 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
*SHAFTS (NOT FLETCHED ARROWS)
X7 Eclipse arrow shaft is the World Standard for precision and a perfect tune. Precise spine, consistent weight and incredible straightness.
SPECIFICATIONS
- 7178-T9 aerospace alloy
- Hard-anodized black finish
- Straightness: ± .001”
- Weight tolerance: ± 0.75%
- Strength (psi): 105,000
- G-UNI/Super UNI bushing installed
- NOCKS, INSERTS AND POINTS SOLD SEPARATELY
- Sizes 1514 through 2214 are World Archery compliant
- MADE IN USA
| SIZE | SHAFT WEIGHT GPI |
SPINE @ 28″ SPAN DEFLECTION IN INCHES |
SHAFT O.D. INCHES |
STOCK LENGTH INCHES |
|---|---|---|---|---|
| 1514 | 6.8 | 1.379 | .244 | 26.6 |
| 1614 | 7.7 | 1.153 | .251 | 28 |
| 1714 | 8.1 | .963 | .268 | 29.5 |
| 1814 | 8.6 | .799 | .284 | 30 |
| 1914 | 9.3 | .658 | .300 | 31 |
| 2014 | 9.6 | .579 | .314 | 32.5 |
| 2114 | 9.9 | .506 | .328 | 32.5 |
| 2212 | 8.8 | .505 | .345 | 32.5 |
| 2213 | 9.9 | .458 | .344 | 33.5 |
| 2214 | 10.4 | .425 | .348 | 33.5 |
| 2413 | 10.5 | .365 | .372 | 34 |
| 2511 | 9.6 | .348 | .396 | 34.5 |
| 2512 | 10.3 | .321 | .398 | 34.5 |
| 2613 | 11.5 | .265 | .414 | 35 |
If having Shafts cut, measure from the hole in the nock (MICROLITE SUPER NOCK) to the end of the Shaft without the insert or point.
